Condition Monitoring System (CMS) is one of very important part of the overall Asset Integrity Management systems. It is a basis for many following studies, e.g. RBI, RCM, etc. CMS is applied from the beginning of the project through the operations of the installation. CMS can start with Baseline Corrosion monitoring, and then continuously monitor the operating status of the equipment. Good CMS may support effective decision making in further inspection and maintenance activities.


HSEAll Consulting has developed H.CMS - HSEAll Condition Monitoring System, a planning and database tool supporting CMS of process equipment, such as process tanks, pressure vessels, piping, ect.



H.CMS Main Features:
- Provide the Condition Management Databases for process static equipment, i.e. pressure vessels, pipings, etc.;
- Support the Integrity Risk Assessment as per API 581 for process static equipment;
- Support the Development of Baseline Corrosion Monitoring programs for process static equipment;
- Support periodic Wall Thickness Measurement (WTM) survey campaigns for process equipment, e.g. pressure vessels and pipings;
- Support Wall Thickness Calculations as per API 510, API  570, etc. ;
- Manage systematically the equipment Inspection & Maintenance reports/records;

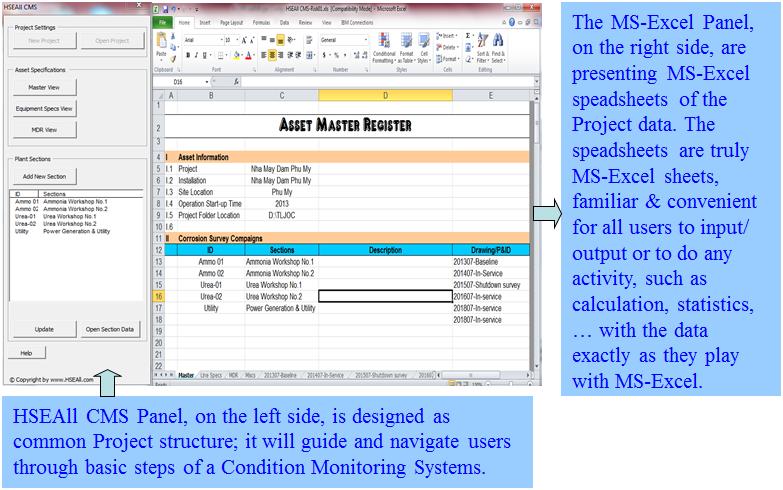

- Users Friendly Interface and Easy-to-used MS Excel-based Software .

Download H.CMS Brochure
